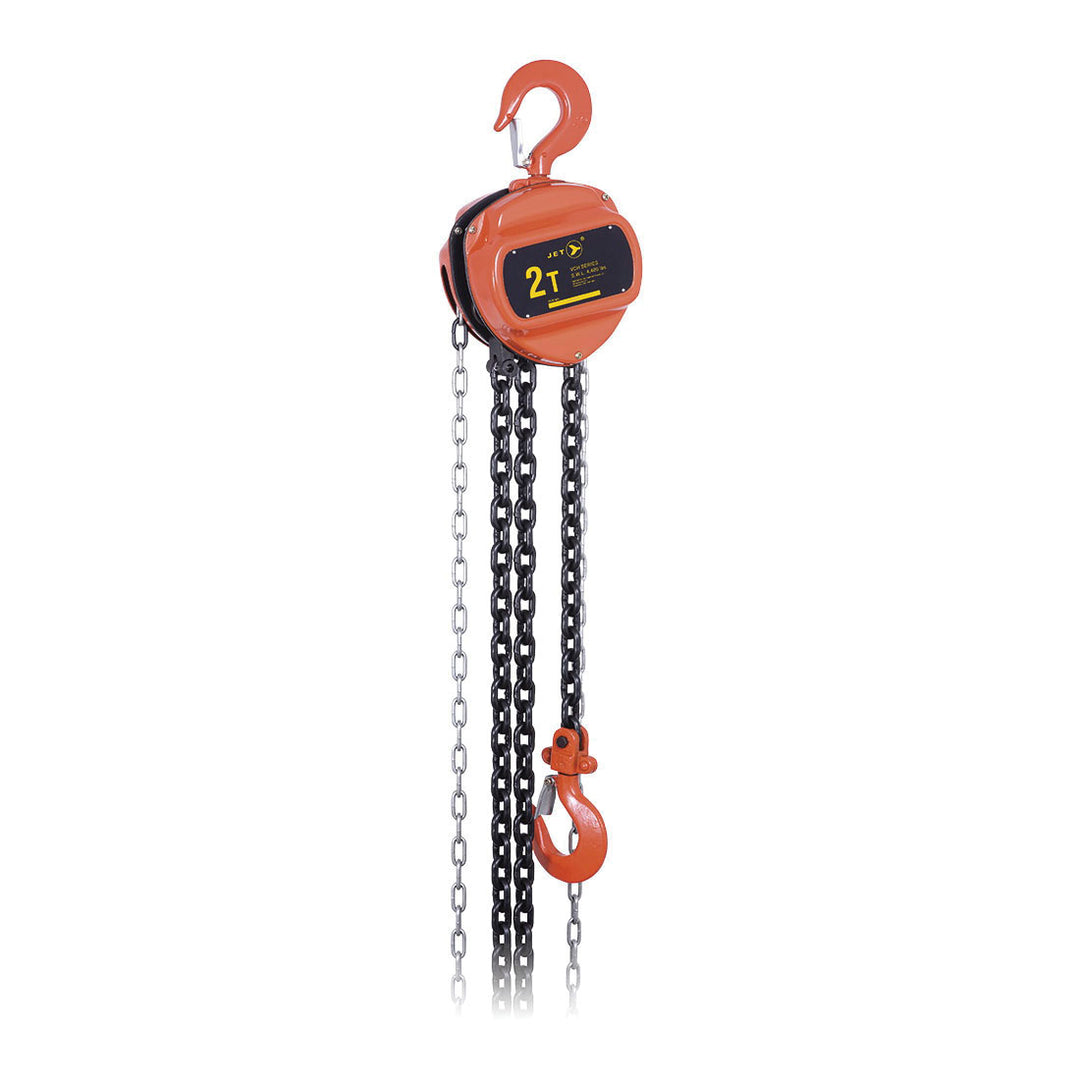

JET VCH-2020 ~ 2 Ton 20' Lift Vch Series Chain Hoist 101036

by JET
661.95 CAD

Ships in 5 days

2 Ton 20' Lift VCH Series Chain Hoist

  • Triple spur geared for efficient operation
  • Hardened steel roller bearings support load sheave for easy operation
  • Dual pawl Weston style brake for safe reliable operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Grade 80 load chain
  • Top and bottom safety hooks bend slowly to warn of overloads
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
  • Part # 101036
    Sold in qty's of 1
    Product type Chain Hoists
  • Rated Lifting Capacity : 4,400 lb
  • Standard Lift : 20'
  • Head Room : 17-1/2 Inch
  • Number of Falls : 1
  • Load Chain Diameter : 8.0mm
  • Force Req
  • to Lift Capacity : 102 lb
  • Length of Hand Chain Pulled to Lift Load 1' : 70'
  • A: 7-1/4 Inch
  • B: 6-1/4 Inch
  • C: 52mm
  • G: 33.5mm
  • H: 17-1/2 Inch
