Chain Hoists VCH-0520 1/2 Ton 20' Lift Vch Series Chain Hoist 101006 - Targa Tools

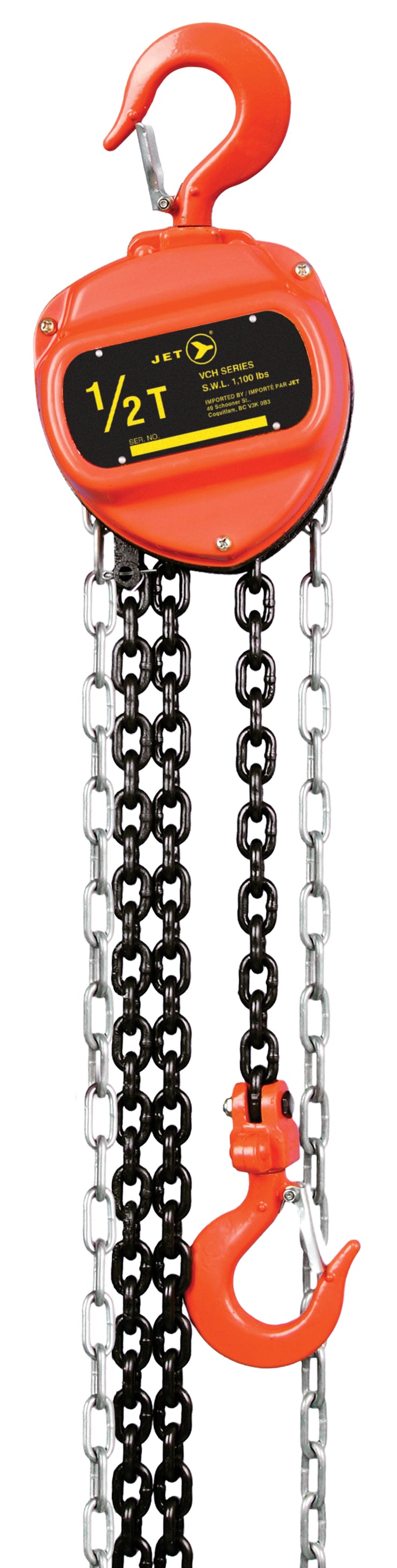

JET VCH-0520 ~ 1/2 Ton 20' Lift Vch Series Chain Hoist 101006

by JET
424.14 CAD

Ships in 5 days

1/2 Ton 20' Lift VCH Series Chain Hoist

  • Triple spur geared for efficient operation
  • Hardened steel roller bearings support load sheave for easy operation
  • Dual pawl Weston style brake for safe reliable operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Grade 80 load chain
  • Top and bottom safety hooks bend slowly to warn of overloads
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
  • Part # 101006
    Sold in qty's of 1
    Product type Chain Hoists
  • Rated Lifting Capacity : 1,100 lb
  • Standard Lift : 20'
  • Head Room : 11-1/32 Inch
  • Number of Falls : 1
  • Load Chain Diameter : 6.0mm
  • Force Req
  • to Lift Capacity : 49 lb
  • Length of Hand Chain Pulled to Lift Load 1' : 27'
  • A: 4-15/16 Inch
  • B: 4-13/16 Inch
  • C: 35mm
  • G: 27mm
  • H: 11-1/32 Inch
