Chain Hoists JET KCH-3020L 3 Ton Kch Series Chain Hoist With Overload Protection Heavy Duty
Chain Hoists JET KCH-3020L 3 Ton Kch Series Chain Hoist With Overload Protection Heavy Duty

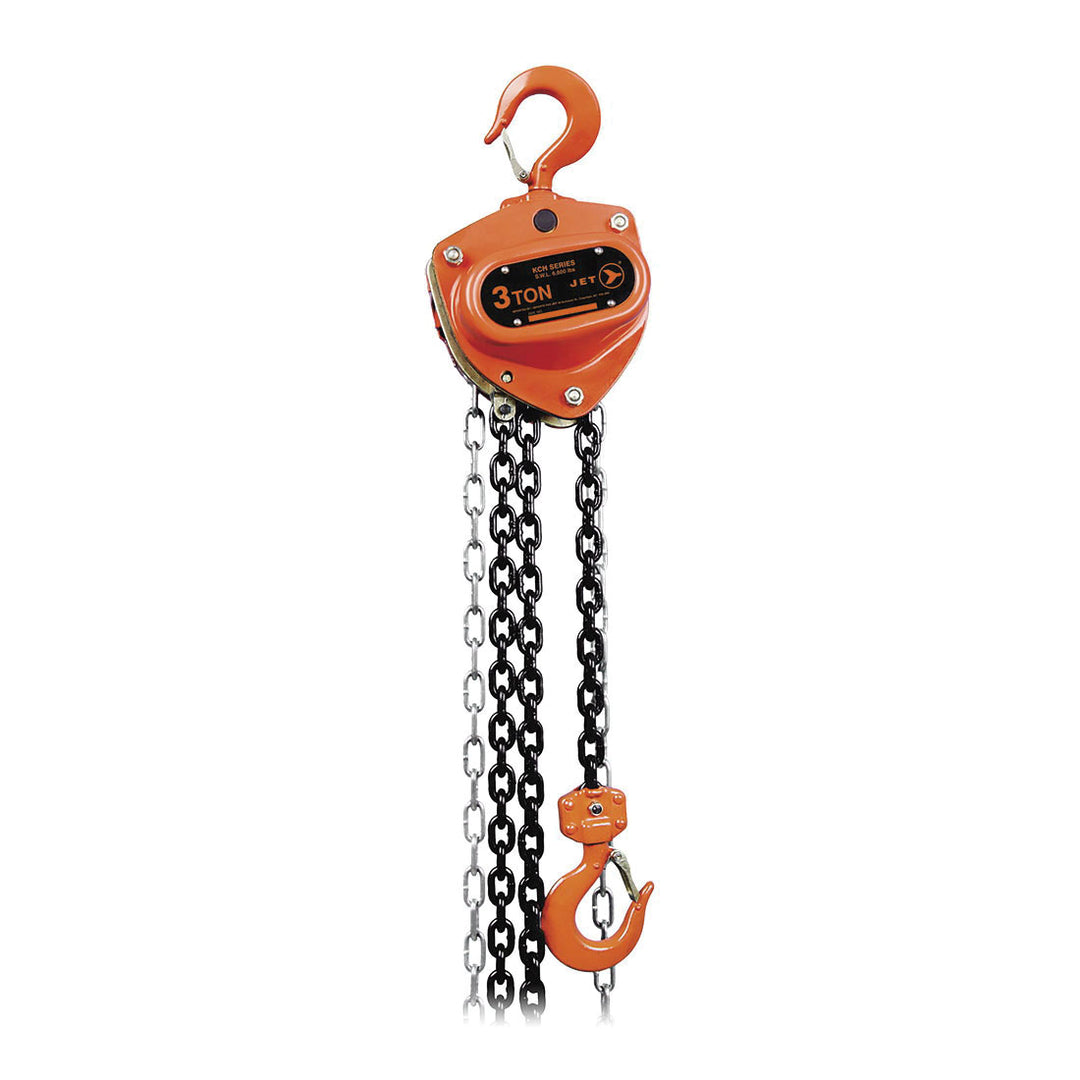

JET KCH-3020L ~ 3 Ton Kch Series Chain Hoist With Overload Protection Heavy Duty

by JET
1,373.44 CAD

Ships in 5 days

3 Ton KCH Series Chain Hoist with Overload Protection - Heavy Duty

  • Equipped with an automatic overload protection device as standard equipment (up to 5 tons)
  • Device is factory preset to prevent serious overload of the hoist
  • Actuation is automatic, requiring no input from the operator
  • Triple Spur geared for efficient operation
  • Grade 100 load chain for greater strength
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
    • Part # 101346
    Sold in qty's of 1
    Product type Chain Hoists
    Size 2-15/16 Inch
  • Rated Lifting Capacity : 6,600 lb
  • Standard Lift : 20'
  • Head Room : 20 Inch
  • Number of Falls : 2
  • Load Chain Diameter : 7.1mm
  • Force Req
  • to Lift Capacity : 79 lb
  • Length of Hand Chain Pulled to Lift Load 1' : 114'
  • A: 6-5/8 Inch
  • B: '9-1/4 Inch
  • C: 4-1/8
