Jet KCH-1020 ~ 1 Ton 20' Lift Kch Series Chain Hoist Heavy Duty | Targa Tools
Chain Hoists Jet KCH-1020 1 Ton 20' Lift Kch Series Chain Hoist Heavy Duty
Chain Hoists Jet KCH-1020 1 Ton 20' Lift Kch Series Chain Hoist Heavy Duty

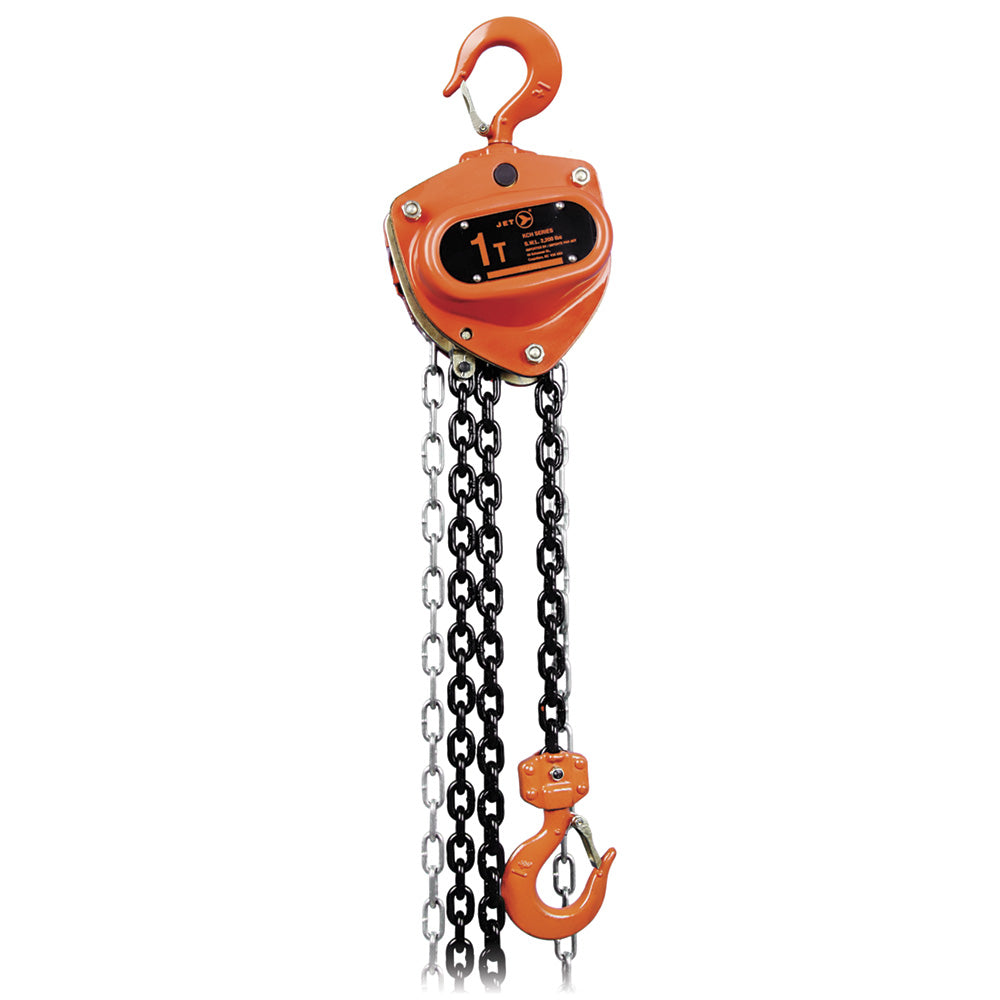

Jet KCH-1020 ~ 1 Ton 20' Lift Kch Series Chain Hoist Heavy Duty

by Jet
640.44 CAD

Ships in 5 days

1 Ton 20' Lift KCH Series Chain Hoist - Heavy Duty

  • Triple spur geared for efficient operation
  • Maintenance free sealed bearings reduce operator effort
  • Dual pawl Weston style brake with extra heavy pawl springs for safe reliable operation
  • Extra thick ratchet gear protects brake disc from contamination
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Grade 100 load chain for greater strength
  • Top and bottom safety hooks bend slowly to warn of overloads
  • Cast safety latches exceed industry standards
  • Specialized finish on key internal parts for superior corrosion resistance
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
    • Part # 101116
    Sold in qty's of 1
    Product type Chain Hoists
  • Rated Lifting Capacity : 2,200 lb
  • Standard Lift : 20'
  • Head Room : 11-5/8 Inch
  • Number of Falls : 1
  • Load Chain Diameter : 6.3mm
  • Force Req
  • to Lift Capacity : 64 lb
  • Length of Hand Chain Pulled to Lift Load 1' : 43'
  • A: 6-5/16 Inch
  • B: 6-5/16 Inch
  • C: 2 Inch
  • D: 1-1/8 Inch
  • E: 33mm
  • F: 40mm
  • G: 45mm
  • H: 11-5/8 Inch
