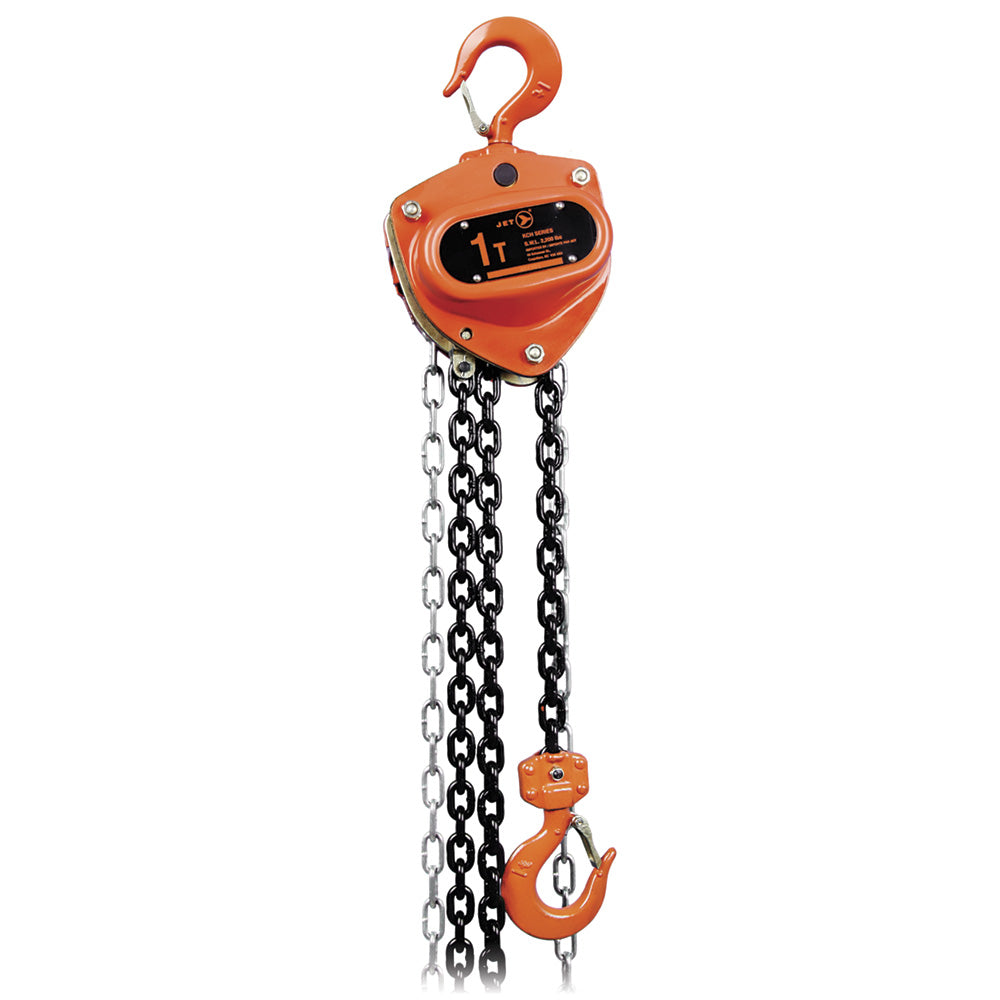

Chain Hoists KCH-1010L 1 Ton Kch Series Chain Hoist With Overload Protection Heavy Duty 101312 - Targa Tools

JET KCH-1010L ~ 1 Ton Kch Series Chain Hoist With Overload Protection Heavy Duty 101312

by JET
602.47 CAD

Ships in 5 days

1 Ton KCH Series Chain Hoist with Overload Protection - Heavy Duty

  • Equipped with an automatic overload protection device as standard equipment (up to 5 tons)
  • Device is factory preset to prevent serious overload of the hoist
  • Actuation is automatic, requiring no input from the operator
  • Triple Spur geared for efficient operation
  • Grade 100 load chain for greater strength
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Load tested to 150% of rated capacity with certificate
  • Meets ASME B30.16 standards
  • ISO 9001-2000 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
  • Part # 101312
    Sold in qty's of 1
    Product type Chain Hoists
    Size 2-5/8 Inch
  • Rated Lifting Capacity : 2,200 lb
  • Standard Lift : 10'
  • Head Room : 11-5/8 Inch
  • Number of Falls : 1
  • Load Chain Diameter : 6.3mm
  • Length of Hand Chain Pulled to Lift Load 1' : 43'
  • A: 6-5/16 Inch
  • B: 6-5/16 Inch
  • C: 2 Inch
  • D: 1-1/8 Inch
  • E: 33mm
  • F: 40mm
  • G: 45mm
  • H: 11-5/8 Inch
