Bandsaws JHBS916 9 Inch x 16 Inch Horizontal / Vertical Bandsaw 222335 - Targa Tools

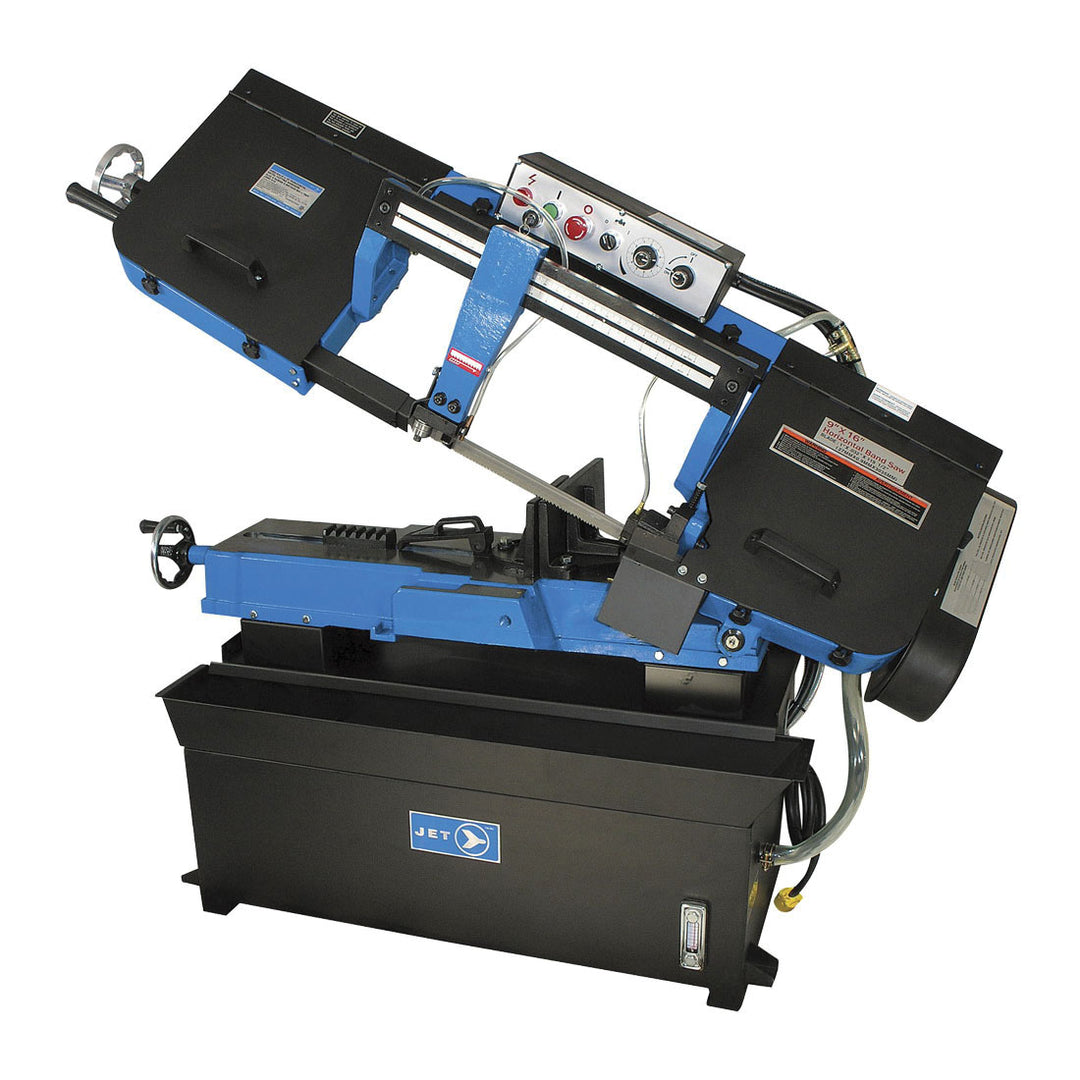

JET JHBS916 ~ 9 Inch x 16 Inch Horizontal / Vertical Bandsaw 222335

by JET
10,070.49 CAD

Ships in 5 days

9 Inch x 16 Inch Horizontal/Vertical Bandsaw

  • Designed for industrial use, this saw features a heavy duty steel and cast iron saw frame
  • One piece cast iron saw bed
  • Enclosed base, welded for strength
  • Precision cast 13" blade wheels
  • Coolant system includes: pump and reservoir
  • fully adjustable delivery nozzles at front and rear blade guides
  • coolant pick-up port in the drive wheel housing
  • quick-check gauge for coolant level
  • Removable chip tray for easy cleaning
  • Totally enclosed 1-1/2 HP fan cooled motor with 24 volt controls
  • Four speed belt drive system
  • Hydraulically controlled feed rate with micro adjust switch
  • Automatic shut-off limit switch
  • Blade guide system consists of ball bearing thrust roller, ball bearing blade guides and tungsten carbide slides
  • Moveable left blade guide arm adjusts from 16" to 7" capacity
  • Quick set vise adjusts for 90° to 45° angle cuts
  • Material stop with 24" capacity
  • Each machine factory tested and set
  • Standard Equipment: variable pitch blade
  • blade chip brush
  • coolant system
  • tool kit
  • quick set vise and material stop
  • Part # 222335
    Sold in qty's of 1
    Product type Bandsaws
    Size 27/64 Inch
  • Capacity 45° : 6-1/2 Inch (circle), 9 Inch X 6-1/8 Inch (rectangular shape)
  • Throat Depth : 9 Inch
  • Blade : 1 Inch x 0.032 Inch x 119-1/2 Inch, 4/6 tpi
  • Blade Speeds : 82 SFPM, 132 SFPM, 170 SFPM, 235 SFPM
  • Floor Space Required : 65 Inch x 28 Inch
  • Motor : 1-1/2 HP, 1 ph, 230V complete with 24 V control panel
  • Vise Swivels : 45°
  • Wheel Diameter : 13 Inch
  • Bed Height : 25 Inch
