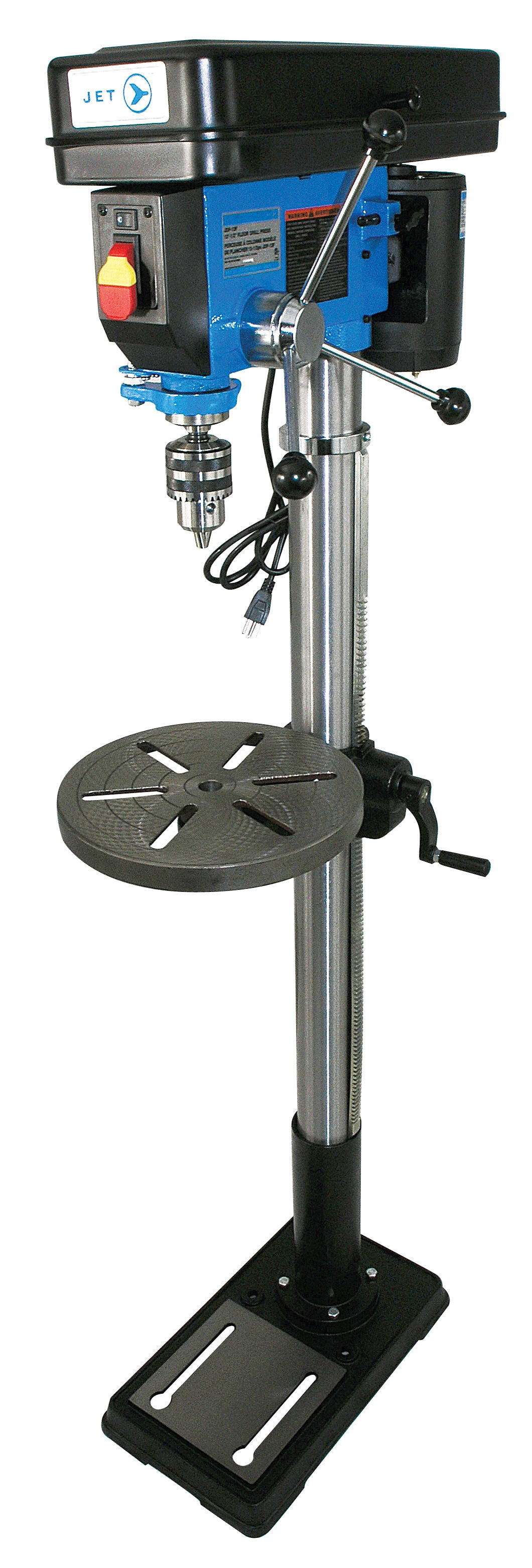

JET JDP-13F ~ 13-1/2 Inch 3/4 Hp 12 Speed Floor Drill Press 200275

by JET
1,177.20 CAD

Ships in 5 days

13-1/2 Inch 3/4 HP 12 Speed Floor Drill Press

  • Powerful 3/4 horse power motor
  • 12 speed capability allows for a broad assortment of drilling applications
  • Safety on/off switch with removable lock-out key
  • Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
  • Worktable with quick release clamp rotates and tilts to 45° right and left
  • Slots in worktable and base permit easy clamping of the work piece
  • Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
  • Built-in work lamp with separate switch (bulb not included) Standard Equipment: Drill chuck and key
  • Part # 200275
    Sold in qty's of 1
    Product type Drill Presses & Accessories
  • Type: Floor Model
  • Chuck Size : 5/8 Inch
  • Drilling Capacity : 5/8 Inch
  • Spindle Travel : 3-1/8 Inch
  • Spindle Distance to Base : 48-3/4 Inch
  • Max
  • Spindle Distance to Table : 31-1/2 Inch
  • Table Diameter : 11-3/8 Inch
  • Table Tilt (Right and Left) : 0 – 45°
  • Spindle Taper : MT2
  • Column Diameter : 2-7/8 Inch
  • Number of Spindle Speeds : 12
  • Range of Spindle Speeds : 280 – 3,000 RPM
  • Overall Height : 61-5/8 Inch
  • Base Size : 10 Inch x 16-1/2 Inch
  • Motor : 3/4 HP, 1 ph, 115/230 V, 5.2/2.6 A, Pre-wired 115 V
