JET JBC-3 ~ 3 Ton Beam Clamp With Locking Screw Heavy Duty 120606

by JET
430.42 CAD

Ships in 5 days

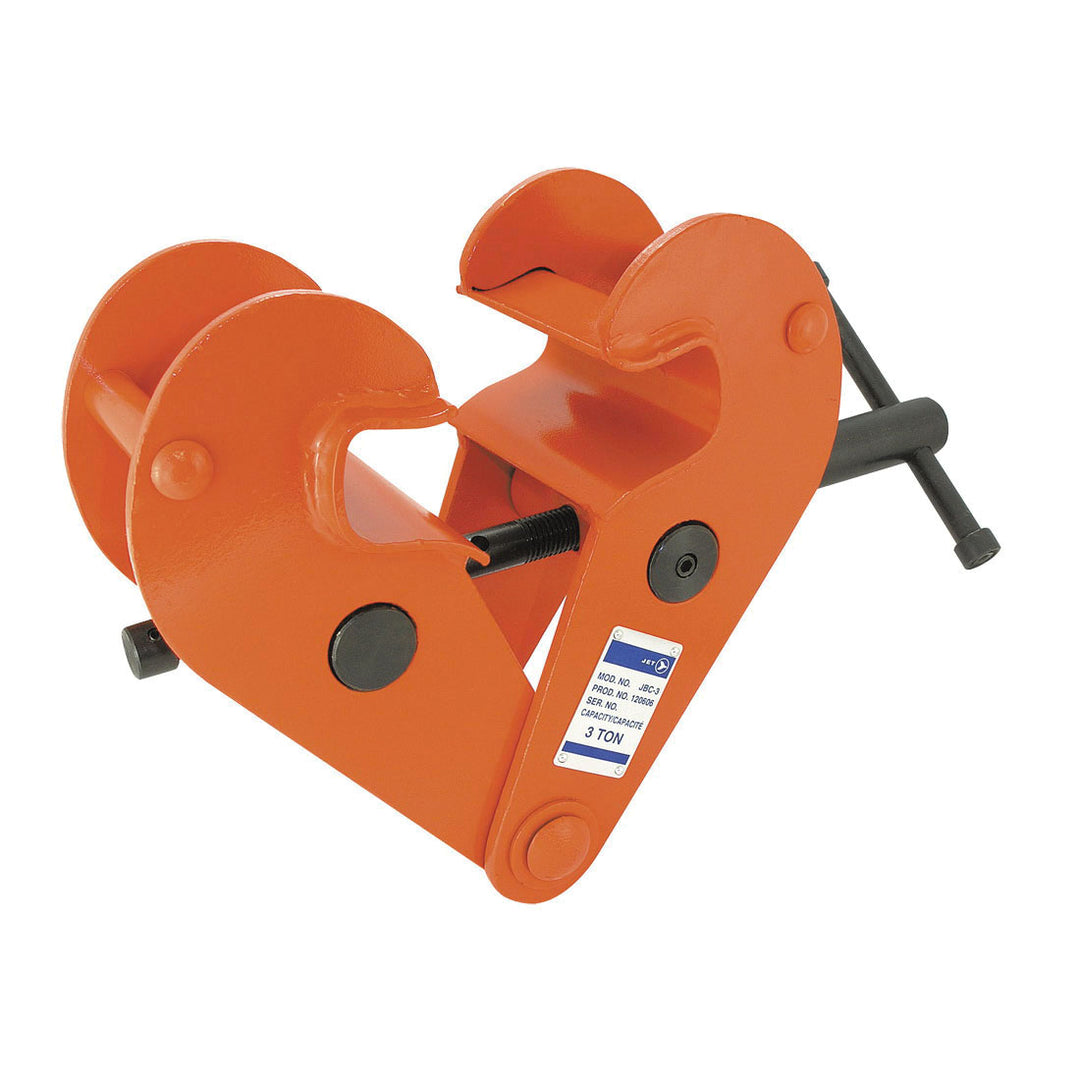

3 Ton Beam Clamp With Locking Screw - Heavy Duty

  • Can be used for suspending loads or inverted as a clamp for vertical lifting of flanged beams
  • Jaw design reduces stress on beam flanges by distributing load away from edges
  • Equal width jaws assure best possible stability
  • Threaded handle allows for ease of installation and portability
  • Special locking screw mechanism ensures the unit stays tight, increasing safety
  • Can be adjusted to fit securely on a wide range of flange and beam widths
  • Built-in suspension bar provides ultra low headroom
  • Meets ANSI B30.11 and B30.20 specifications (Certificate included)
  • Tested to 150% of rated capacity
  • Maximum angle from vertical 15° when used for lifting beams INSERT HAND DRAWN DIAGRAM
  • heavy duty icon
  • Part # 120606
    Sold in qty's of 1
    Product type Beam Clamps
    Size 10mm
  • Rated Capacity : 6,000 lb
  • Rated Flange Width : 3.35 – 11 Inch
  • Maximum A: 11.22 Inch
  • Minimum B: 9.84 Inch
  • Maximum B: 17.52 Inch
  • C: 4.65 Inch
  • D: .31 Inch
  • E: 10.24 Inch
  • Maximum F: 6.30 Inch
  • Minimum F: 4.33 Inch
  • G: 2.17 Inch
  • H: 0.87 Inch
