Chain Hoists FA1-1S 1 Ton 15' Lift 115/230V 1Ph Electric Chain Hoist Heavy Duty 107203 - Targa Tools

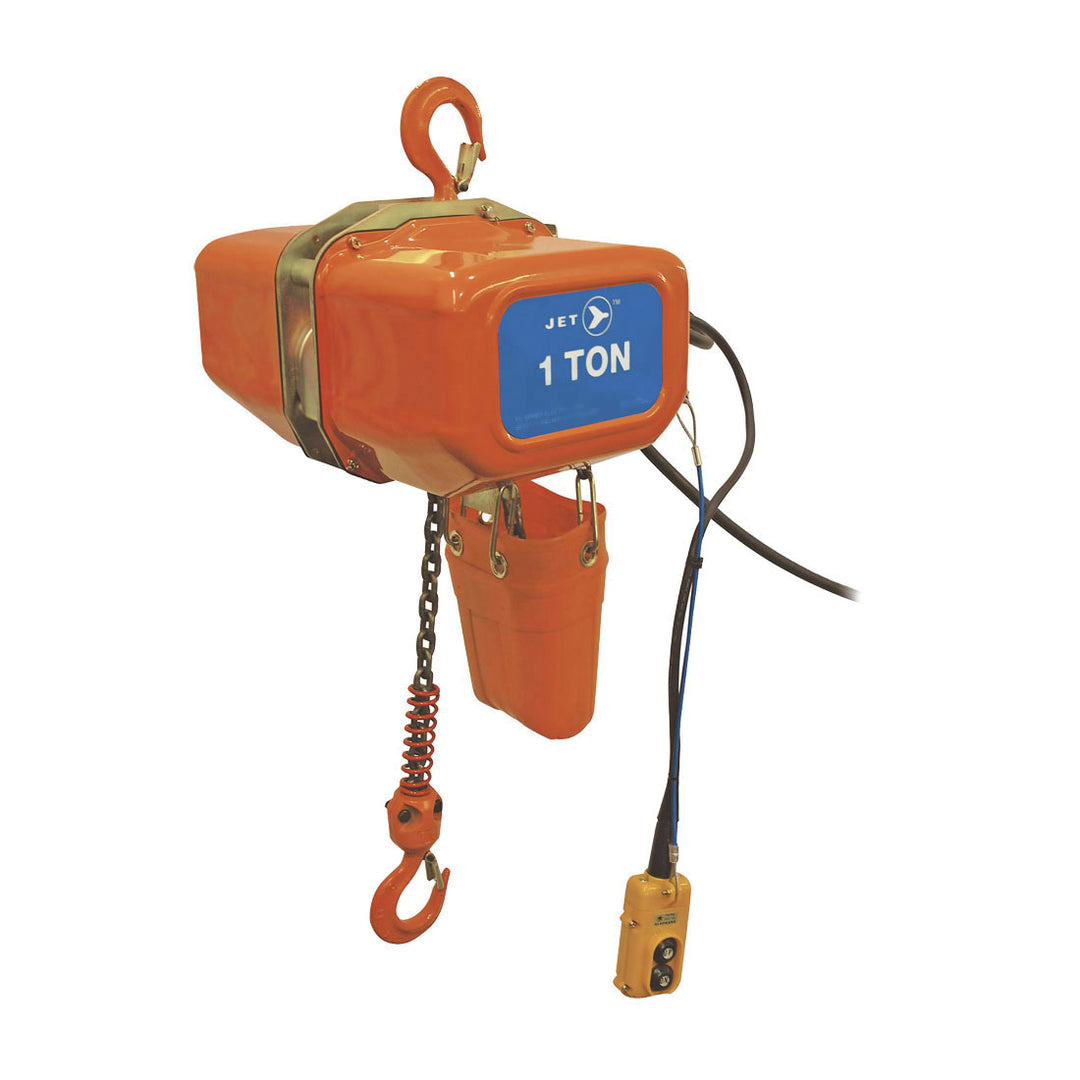

JET FA1-1S ~ 1 Ton 15' Lift 115/230V 1Ph Electric Chain Hoist Heavy Duty 107203

by JET
3,971.20 CAD

Ships in 5 days

1 Ton 15' Lift 115/230V 1PH Electric Chain Hoist - Heavy Duty

  • Available in single phase or three phase models and various voltages (specify when ordering)
  • 1/2 ton - 5 ton capacities
  • Chain is heat treated, case hardened low wear chain surpassing ISO Class T
  • All models complete with chain collector bucket
  • Reliable electro-magnetic DC brake engages automatically when power is cut off
  • Two button pendant control automatically returns to OFF mode when either button is released
  • 24 volt pendant control for operator safety in damp or humid conditions
  • Strain relief cable protects electrical connections
  • Top and bottom safety hooks designed to bend slowly to warn of overloads
  • Upper and lower limit switches protect hoist from damage if load or chain stop contacts body
  • Gear train and electrical components completely sealed for use outdoors (cover recommended)
  • Modular construction of motor, gear train, and brake assembly allows for quick and easy maintenance
  • Single phase hoists equipped with automatic overload protection preset to 110% of rated capacity
  • Three phase hoists feature reverse phase protection
  • Meets ASME B30.16, CSA, and OSHA standards
  • Part # 107203
    Sold in qty's of 1
    Product type Chain Hoists
  • Rated Lifting Capacity : 2,200 lb
  • Standard Lift : 15'
  • Standard Chain Bucket : #2
  • Hoisting Speed : 10 FPM
  • Voltage : 115/230 V
  • Power Source : 1 ph
  • Head Room : 22.44 Inch
  • Motor Power : 1.2 HP
  • Duty Rating : 25 min
  • Power Cable Length : 16'
  • Number of Falls : 1
  • Amperes : 13 / 10.5
  • A: 6.69 Inch
  • B: 5.04 Inch
  • C: 9.41 Inch
  • D: 13.72 Inch
  • H: 22.44 Inch
  • K: 1.69 Inch
  • L: 1.65 Inch
  • M: 4.21 Inch
  • N: 1.22 Inch
  • O: 0.91 Inch
