Jet AR316SD ~ 3/16 Inch Air Riveter Super Heavy Duty | Targa Tools

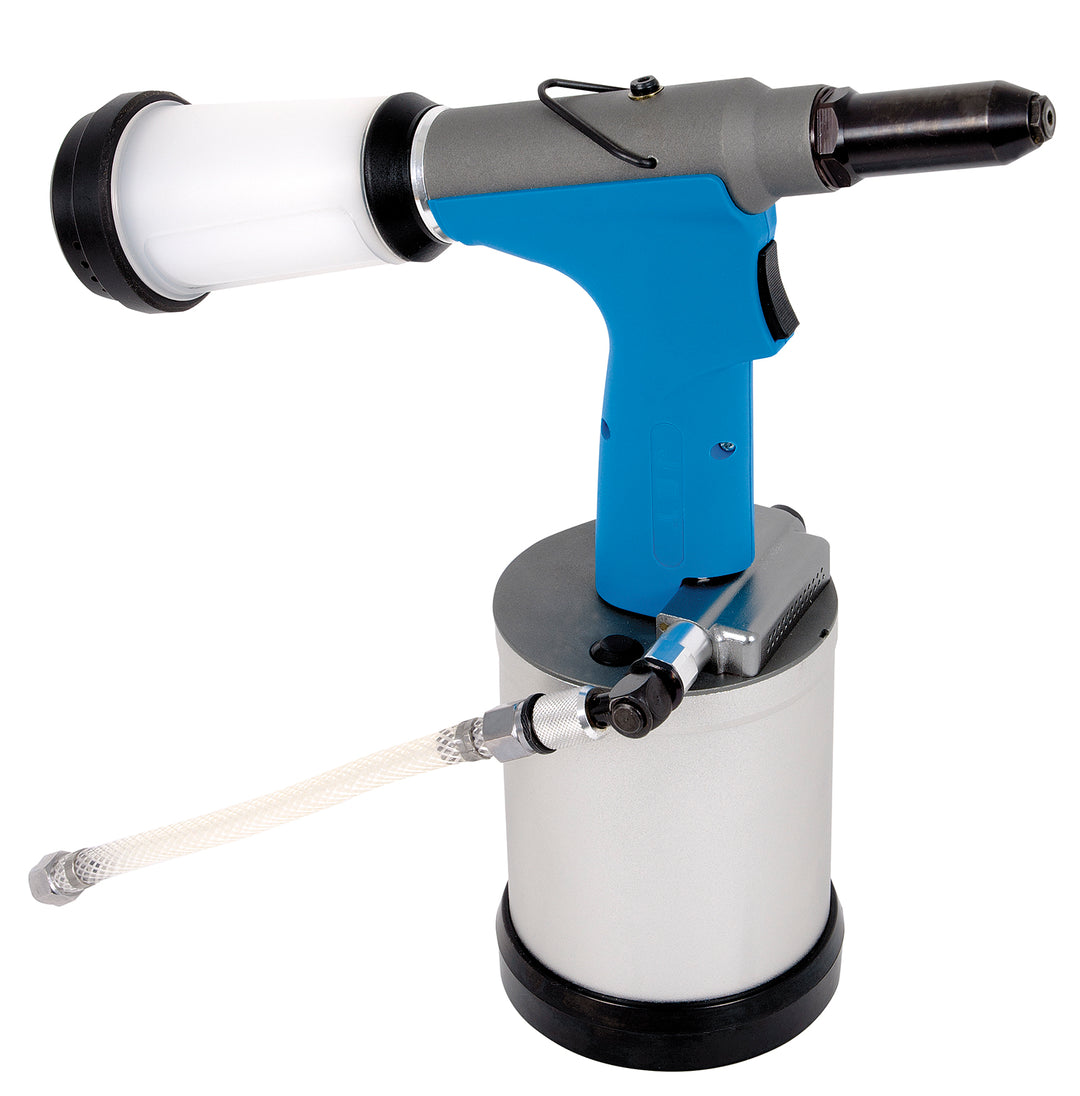

Riveters Jet AR316SD 3/16 Inch Air Riveter Super Heavy Duty
Riveters Jet AR316SD 3/16 Inch Air Riveter Super Heavy Duty

Jet AR316SD ~ 3/16 Inch Air Riveter Super Heavy Duty

by Jet
1,009.83 CAD

Ships in 5 days

3/16 Inch Air Riveter ? Super Heavy Duty

  • New production quality air riveter delivers a powerful pulling load of 2,600 lbs
  • Can be used on aluminum, steel and stainless steel rivets up to 3/16"
  • Specific components manufactured with high cost, super precise CNC deep hole drilling processes for extreme accuracy and tolerance
  • Longer 20mm stroke sets rivets in one hit, increasing efficiency
  • Integrated vacuum/exhaust system with a convenient adjustable switch allows operator to adjust mandrel retention and collection
  • Designed with integrated spring and air return system for fast, reliable cycles
  • Japanese NOK rubber gasket for longest tool life
  • Specially designed "quick opening" collection bottle eliminates the need to remove bottle when emptying
  • Includes 4 sizes of nose pieces for a wide range of uses
  • Designed for production and heavy duty power riveting applications
    • Part # 409007
    Sold in qty's of 1
    Air consuption 5.5
    Air inlet thread 1/4 Inch
    Hose diameter 3/8 Inch
    Product type Riveters
  • Stroke : 0.78 Inch (20mm)
  • Pull Force : 2,600 lb
  • Average Air Consumption : 5.5 cfm
  • Min
  • Hose Size : 3/8 Inch
  • Air Inlet (NPT) : 1/4 Inch
  • Nosepiece : 3/32 Inch (2.4mm), 1/8 Inch (3.2mm), 5/32 Inch (4.0mm), 3/16 Inch (4.8mm)
  • Vibration: 2.5 m/s?
  • Vibration: 75 dBA
