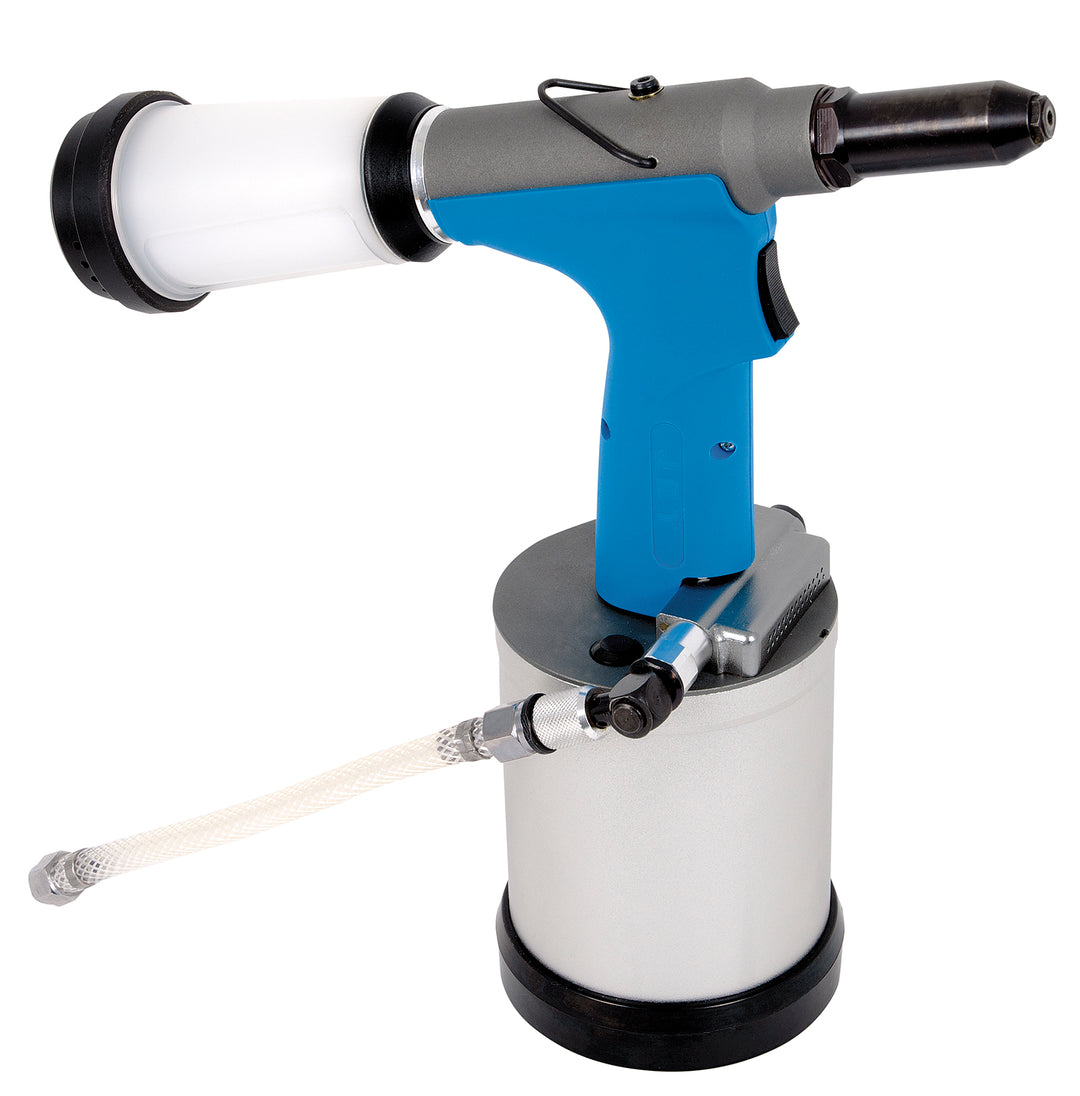

Jet AR14SD ~ 1/4 Inch Air Riveter Super Heavy Duty | Targa Tools
Riveters Jet AR14SD 1/4 Inch Air Riveter Super Heavy Duty
Riveters Jet AR14SD 1/4 Inch Air Riveter Super Heavy Duty

Jet AR14SD ~ 1/4 Inch Air Riveter Super Heavy Duty

by Jet
1,324.70 CAD

Ships in 5 days

1/4 Inch Air Riveter ? Super Heavy Duty

  • New production quality air riveter delivers a powerful pulling load of 3,520 lbs
  • Can be used on aluminum, steel and stainless steel rivets up to 1/4"
  • Can also be used on 3/16" and 1/4" monobolts
  • Specific components manufactured with high cost, super precise CNC deep hole drilling processes for extreme accuracy and tolerance
  • Longer 26mm stroke sets rivets in one hit, increasing efficiency
  • Integrated vacuum/exhaust system with a convenient adjustable switch allows operator to adjust mandrel retention and collection
  • Designed with integrated spring and air return system for fast, reliable cycles
  • Japanese NOK rubber gasket for longest tool life
  • Specially designed "quick opening" collection bottle eliminates the need to remove bottle when emptying
  • Includes 3 sizes of nose pieces for a wide range of uses
  • Designed for production and heavy duty power riveting applications
    • Part # 409008
    Sold in qty's of 1
    Air consuption 10.1
    Air inlet thread 1/4 Inch
    Hose diameter 3/8 Inch
    Product type Riveters
  • Stroke : 1.02 Inch (26mm)
  • Pull Force : 3,520 lb
  • Average Air Consumption : 10.1 cfm
  • Min
  • Hose Size : 3/8 Inch
  • Air Inlet (NPT) : 1/4 Inch
  • Nosepiece : 5/32 Inch ( 4.0mm), 3/16 Inch ( 4.8mm), 1/4 Inch ( 6.4mm)
  • Vibration: 2.5 m/s?
  • Vibration: 75 dBA
