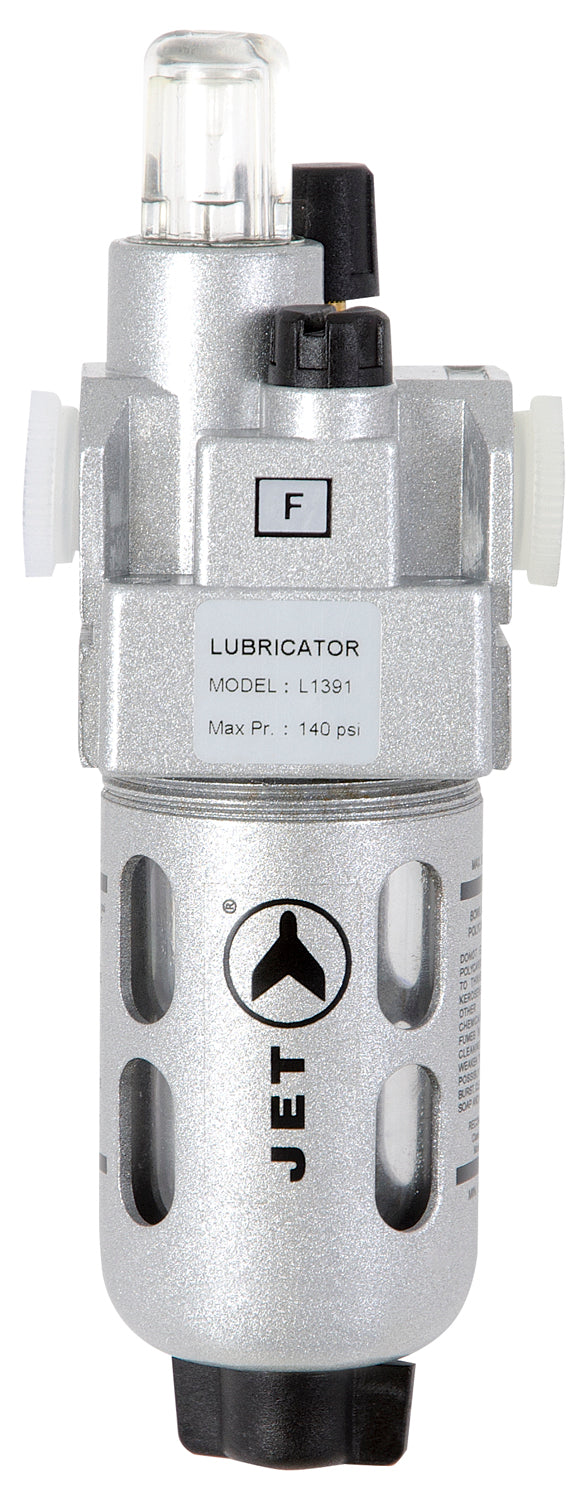

Air Lubricators Jet ALM14 Air Lubricator 1/4 Inch Npt Miniature

Jet ALM14 ~ Air Lubricator 1/4 Inch Npt Miniature

Jet SKU: AS FRL 408833

Jet ALM14 ~ Air Lubricator 1/4 Inch Npt Miniature

Jet SKU: AS FRL 408833
  • Secure payments
/

Sold in multiples of 1 (s)

  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.

Stock Type:
Usually ships in 5 business days

Air Lubricator 1/4 Inch NPT - Miniature

  • Used to feed lubricants to pneumatic equipment
  • These maintain a constant oil-to-air density over a wide range of flow
  • Lubricators are Fog/ Micro Mist type, up to 50' pipe runs
  • Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
  • The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
  • Polycarbonate bowl with threaded steel bowl guard
  • Sintered Bronze Filtering element
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60?C (32-140?F)
  • Modular Mounting
  • Vertical Mounting
  • Conforms to ISO 6301-1
  • Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
  • Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
  • Note: Designed for best performance with 32 grade oil
    • Part # 408833
    Sold in qty's of 1
    Product type Air Lubricators
    Thread 1/4 Inch-NPT
