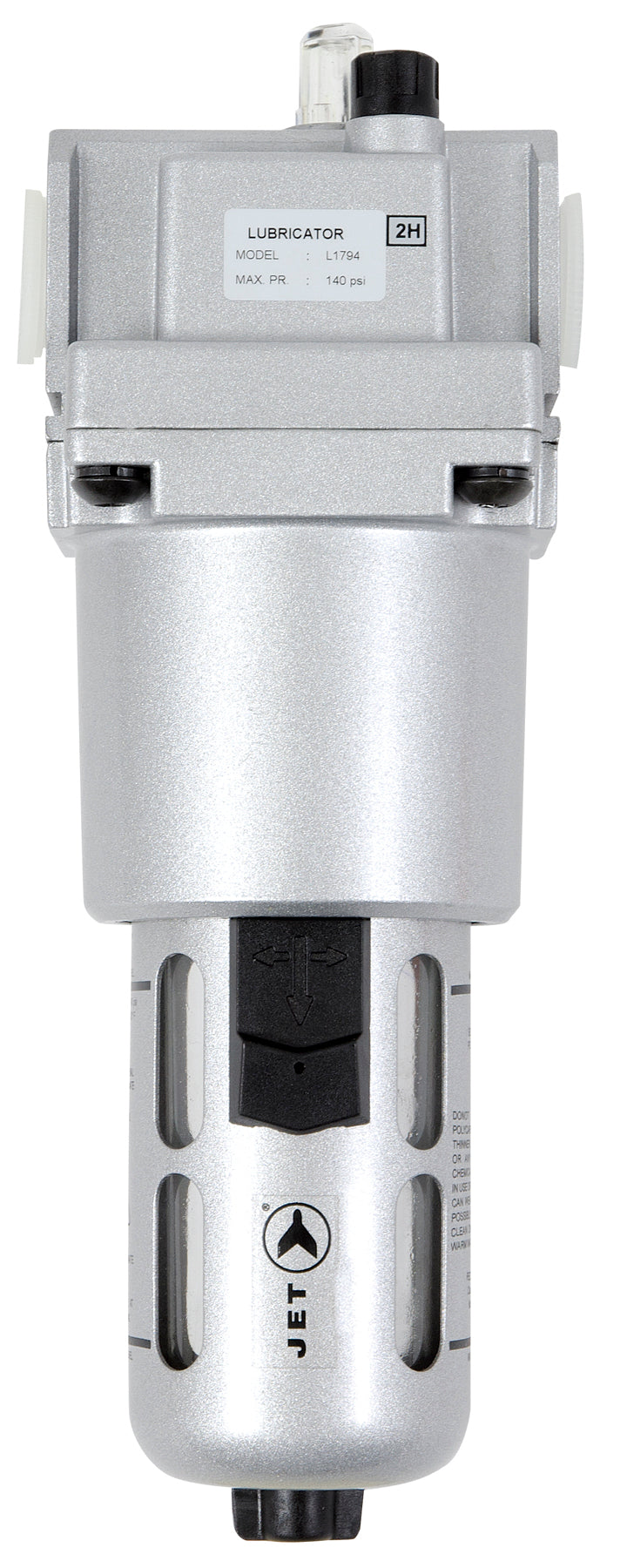

JET ALH34 ~ Air Lubricator 3/4 Inch Npt Heavy Duty 408847

by JET
301.62 CAD

Ships in 5 days

Air Lubricator 3/4 Inch NPT - Heavy Duty

  • Used to feed lubricants to pneumatic equipment
  • These maintain a constant oil-to-air density over a wide range of flow
  • Lubricators are Fog/ Micro Mist type, up to 50' pipe runs
  • Die Cast Aluminum Head, polycarbonate bowl with a steel bowl guard
  • The head is fitted with Oil drop indicator, Oil drop controller and Oil filling plug
  • Polycarbonate bowl with threaded steel bowl guard
  • Sintered Bronze Filtering element
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Conforms to ISO 6301-1
  • Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
  • Inlet pressure 90 PSI (6 BAR) and pressure drop 7.5 PSI (0.5 BAR)
  • Note: Designed for best performance with 32 grade oil
    • Part # 408847
    Sold in qty's of 1
    Product type Air Lubricators
    Thread 4 Inch-NPT
  • Port Size : 3/4 Inch
  • Bowl Size (Lubricator) : 6.8 oz (200 ml)
