Jet AFRLMM14 ~ 3 Piece Air Filter Regulator And Lubricator 1/4 Inch Npt Miniature | Targa Tools
FRLs & Parts Jet AFRLMM14 3 Piece Air Filter Regulator And Lubricator 1/4 Inch Npt Miniature
FRLs & Parts Jet AFRLMM14 3 Piece Air Filter Regulator And Lubricator 1/4 Inch Npt Miniature

Jet AFRLMM14 ~ 3 Piece Air Filter Regulator And Lubricator 1/4 Inch Npt Miniature

by Jet
265.15 CAD

Ships in 5 days

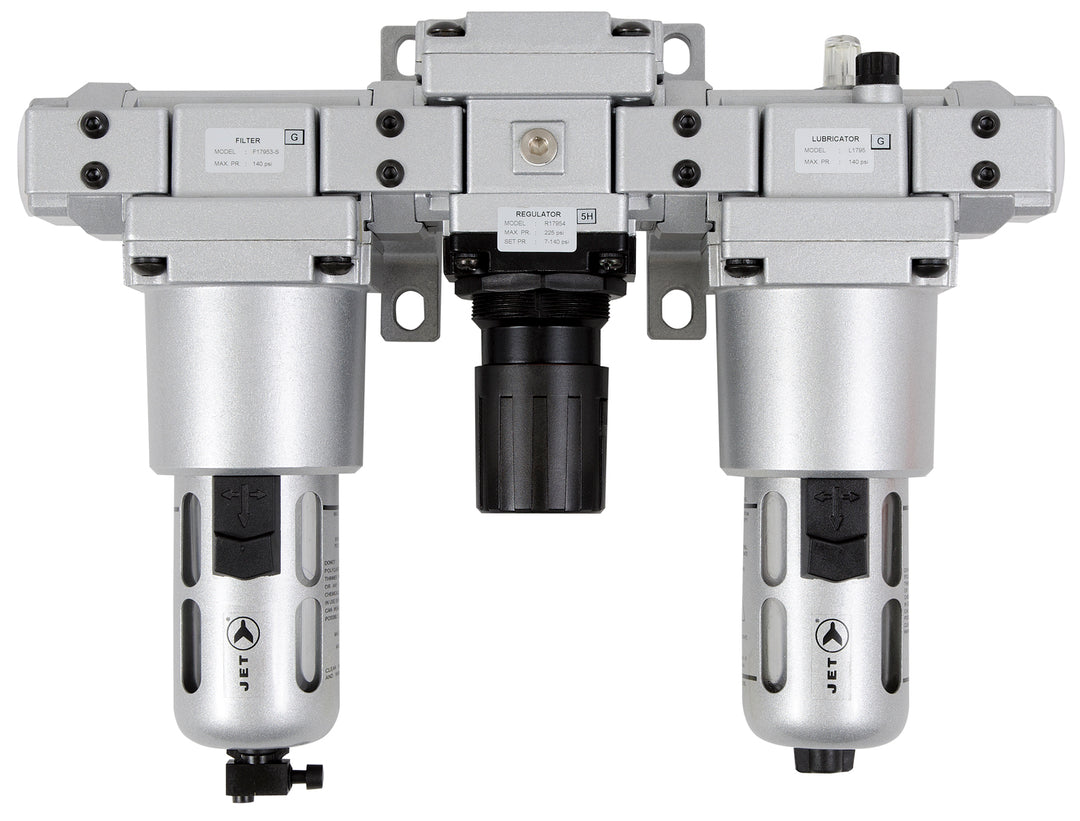

3 PC Air Filter, Regulator and Lubricator 1/4 Inch NPT - Miniature

  • The filter, regulator and lubricator is a 3 piece assembly including all 3 individual components
  • The 3 components are attached in series using spacers and piping adaptors, which make the individual components easily removable / mountable without disturbing the pipe line
  • Comes complete with wall mounting bracket
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60?C (32-140?F)
  • Modular Mounting
  • Vertical Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet Pressure 105 PSI (7 BAR)
  • Set Pressure 90 PSI (6 BAR)
  • Pressure Drop 17 PSI (1 BAR)
    • Part # 408852
    Sold in qty's of 1
    Product type FRLs & Parts
    Thread 1/4 Inch-NPT
  • Port Size : 1/4 Inch
  • Pressure Gauge Port Size : 1/8 Inch
  • Bowl Size (Filter) : 0.3 oz (9 ml)
  • Bowl Size (Lubricator) : 0.68 oz (20 ml)
