Air Filter Regulators AFRI38 Air Filter Regulator Combination 3/8 Inch Npt Intermediate 408884 - Targa Tools

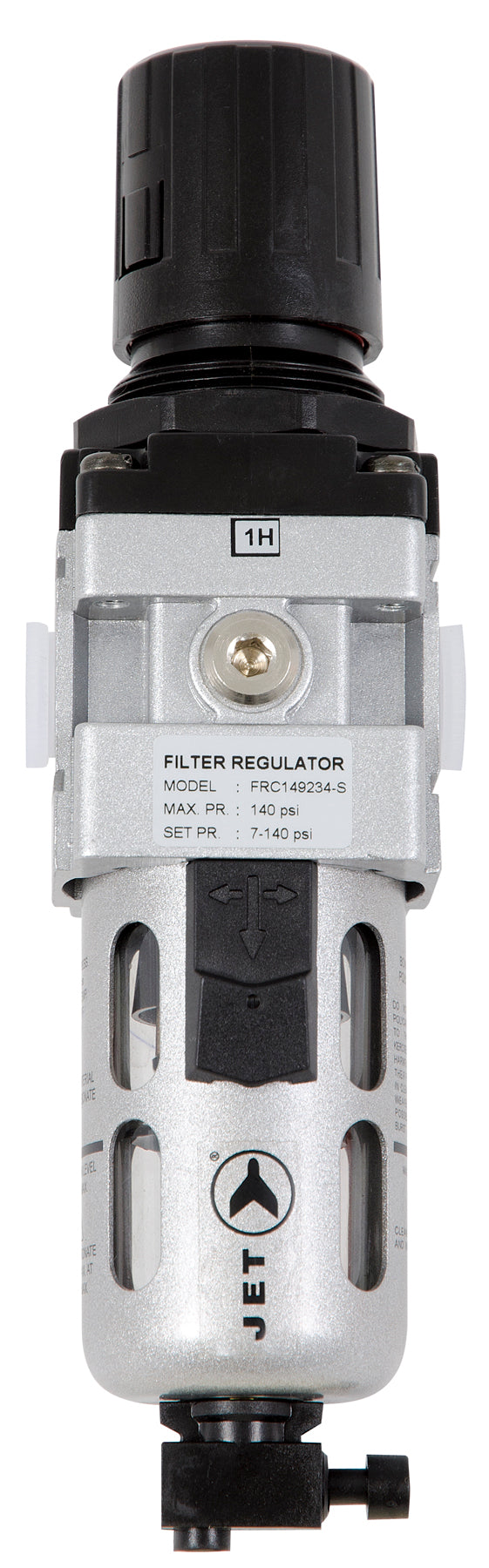

JET AFRI38 ~ Air Filter Regulator Combination 3/8 Inch Npt Intermediate 408884

by JET
149.95 CAD

Ships in 5 days

Air Filter Regulator Combination 3/8 Inch NPT - Intermediate

  • Air filter and regulator combined in one unit
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Regulators uses a Non Raising "Press to Lock" adjusting knob for locking at any set pressure
  • Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Panel Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet pressure 105 PSI (7 BAR)
  • Set pressure 90 PSI (6 BAR)
  • Pressure drop 17 PSI (1 BAR)
  • Part # 408884
    Sold in qty's of 1
    Product type Air Filter Regulators
    Thread 3/8 Inch-NPT
  • Port Size : 3/8 Inch
  • Pressure Gauge Port Size : 1/8 Inch
  • Bowl Size (Filter) : 1.08 oz (32 ml)
