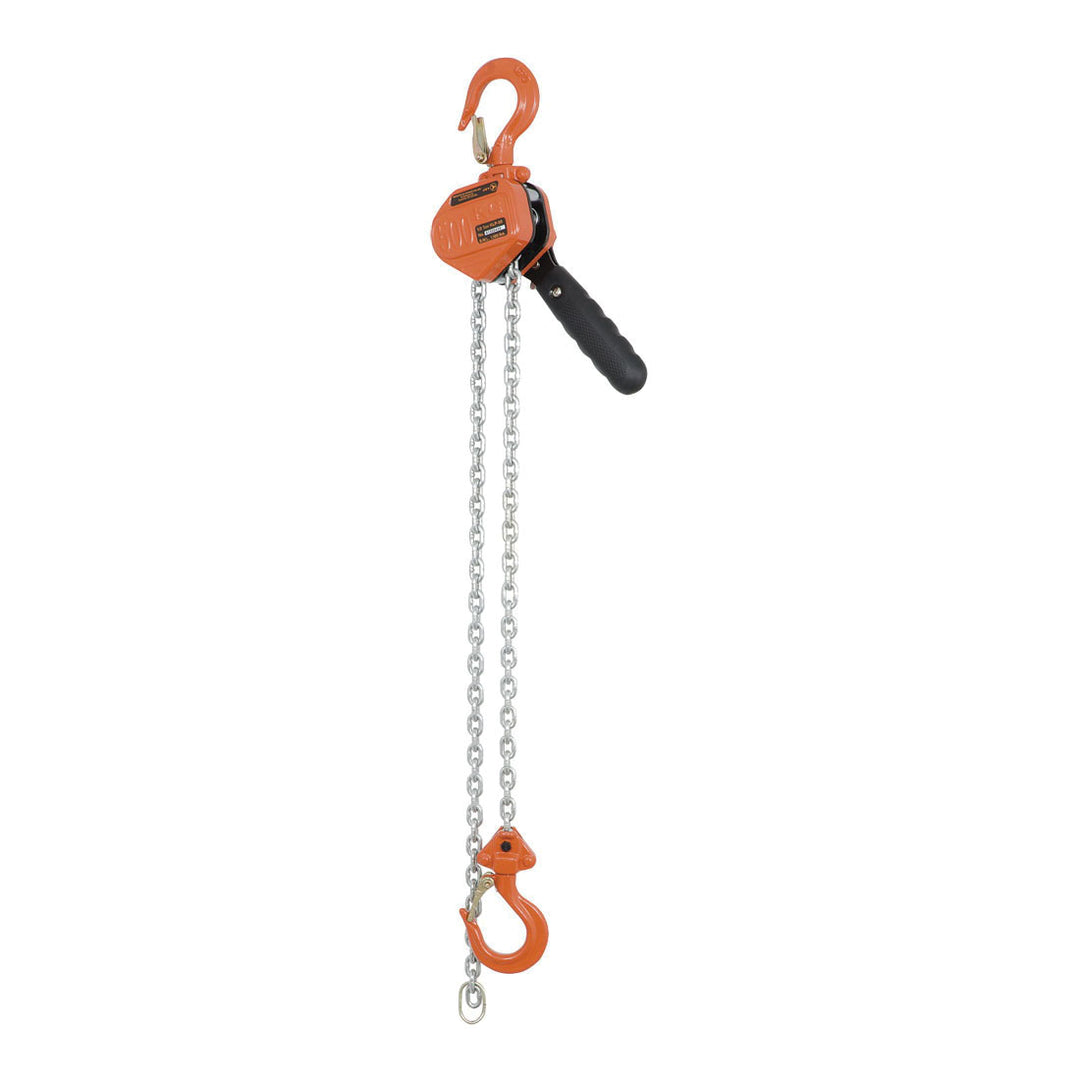

Jet 110804 ~ 1/2 Ton 5' Lift Klp Series Lever Chain Hoist Heavy Duty | Targa Tools
Chain Hoists Jet 110804 1/2 Ton 5' Lift Klp Series Lever Chain Hoist Heavy Duty
Chain Hoists Jet 110804 1/2 Ton 5' Lift Klp Series Lever Chain Hoist Heavy Duty

Jet 110804 ~ 1/2 Ton 5' Lift Klp Series Lever Chain Hoist Heavy Duty

by Jet
473.35 CAD

Ships in 5 days

1/2 Ton 5' Lift KLP Series Lever Chain Hoist - Heavy Duty

  • High impact gear case and brake cover for heavy duty service
  • Grade 100 load chain for greater strength
  • Caged ball bearings on load sprocket for the ultimate in smooth, easy operation
  • Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
  • Exclusive premium grade, non-asbestos brake discs for longest life
  • Top and bottom safety hooks bend to warn of overloads
  • Cast steel safety latches exceed industry standards
  • Deformation indicators on hooks allow accurate measurement for easy maintenance
  • Load tested to 150% of rated capacity (with certificate)
  • Meets ASME B30.21 standards
  • ISO 9001-2008 certified factory
  • NOTE: Custom Lifts are available in any length desired
  • Ask your local JET distributor for details!
    • Part # 110804
    Sold in qty's of 1
    Product type Chain Hoists
    Size 1-9/16 Inch
  • Standard Lift : 5'
  • Number of Falls : 1
  • Load Chain Diameter : 4.3mm
  • Min
  • Distance Between Hooks : 9.84 Inch
  • Force Req
  • to Lift Capacity : 52.8 lb
  • Lever Length : 6.30 Inch
  • A: 9.84 Inch
  • B: 6.30 Inch
  • C: 3.19 Inch
  • D: 3.96 Inch
  • E: 0.96 Inch
