3M™ Particulate Respirator 8511, N95
Distributor: Targa Tools
Part Number: 8511
SAP ID: 7000002056
Legacy SKU: 70070757557
Local Catalog ID: 8511
Product Number: 54343

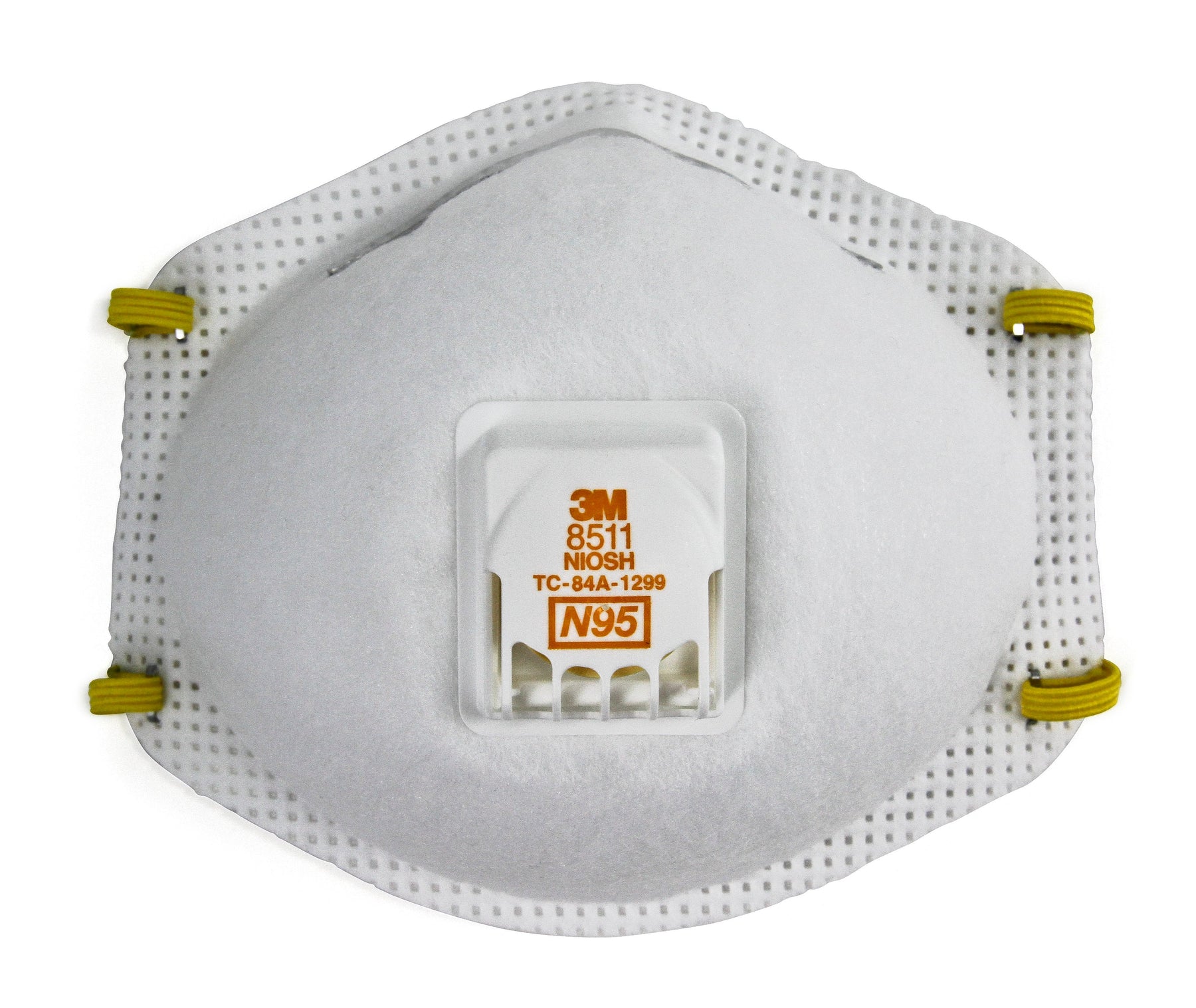

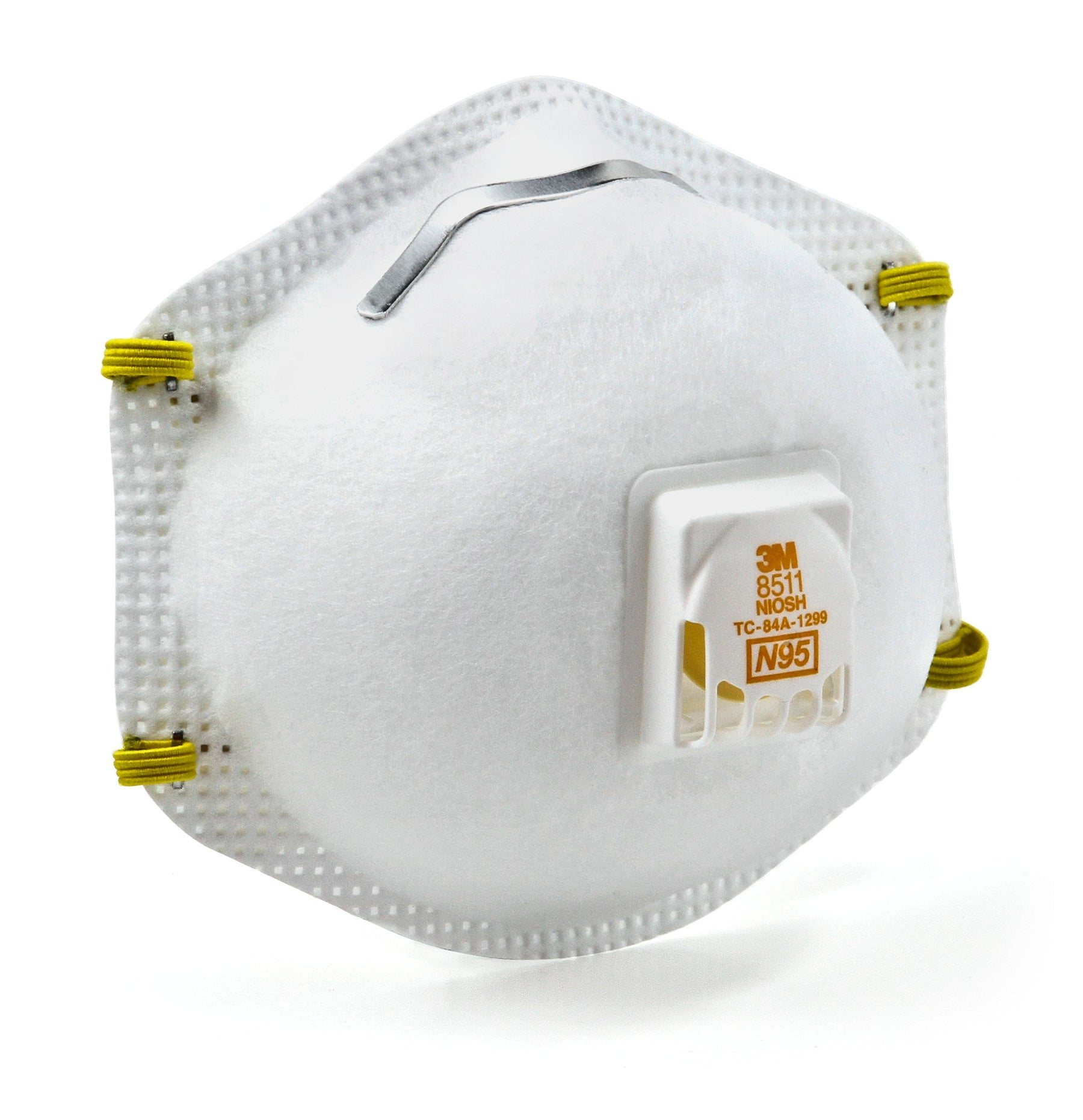

The 3M™ 8511 respirator is a NIOSH-approved N95 mask featuring Advanced Electret Media for ≥95% filtration efficiency at 0.3 µm, paired with a patented Cool Flow™ Exhalation Valve to reduce breathing resistance and keep the interior cooler and drier. Its lightweight cup design and adjustable fit make it ideal for extended wear in hot, humid, or dusty industrial environments.
Key Features
- NIOSH N95 Certified (42 CFR 84)
- Cool Flow™ Valve: Polyisoprene one-way valve for easy exhalation
- Advanced Electret Media: Permanently charged polypropylene fibers
- Cup-Style Shell: Rigid polyester/polypropylene for shape retention
- Adjustable M-Noseclip: Aluminum for custom seal and fog reduction
- Braided Comfort Straps: Dual elastic polyisoprene, stapled (latex-free)
- Shelf Life: 5 years (–20 °C to 30 °C, < 80 % RH)
- Maintenance Free: No additional filters or cartridges required
Technical Specifications
Attribute | Detail |
---|---|
Filter Class | N95 (non-oil) |
Filtration Efficiency | ≥95 % at 0.3 µm |
Filter Media | Melt-blown electret polypropylene |
Inhalation Resistance | ≤35 mm H₂O @ 85 L/min |
Exhalation Resistance | ≤25 mm H₂O @ 85 L/min (valved) |
Valve Housing | Polypropylene |
Valve Flap | Polyisoprene |
Shell Material | Non-woven polyester & polypropylene |
Headbands | Braided elastic polyisoprene |
Nose Clip | Malleable aluminum |
Temperature Reduction | ≈4 °C cooler vs. non-valved |
Shelf Life | 5 years |
Certifications | NIOSH 42 CFR 84, OSHA compliant |
Learn More
Filtration Technology
- Large particles collide with the thick outer fibers (inertial impaction), embedding themselves deep in the media
- Medium-sized droplets are caught as they’re forced to follow airflow lines and sweep into fiber intersections (interception)
- Tiniest aerosols zig-zag by Brownian motion until they drift onto the charged fibers (diffusion capture)
- A permanently charged electret layer gives submicron particles an extra electrostatic “pull,” boosting overall efficiency
- The outermost layer resists surface cake-up, so you get a longer service life before airflow becomes restricted
Cool Flow™ Valve Mechanics
- A light-pressure polyisoprene flap opens as soon as you exhale, letting hot, moist air escape instantly
- Rapid venting keeps the inside of the mask noticeably cooler and drier during heavy breathing
- By flushing out exhaled CO₂-rich air from the dead-air space, it prevents buildup and reduces fatigue
- On inhale the flap snaps closed to restore full N95-grade filtration without any inward leakage
Usage & Maintenance
- Intended for one work shift only—discard at day’s end or sooner if breathing feels harder
- Not suitable for oil-based aerosols, which can degrade the filter media over time
- Before each use check the shell for cracks, the straps for wear, and the nose clip for proper shape
- Keep stored in its original, sealed packaging in a cool, dry spot away from direct sunlight
